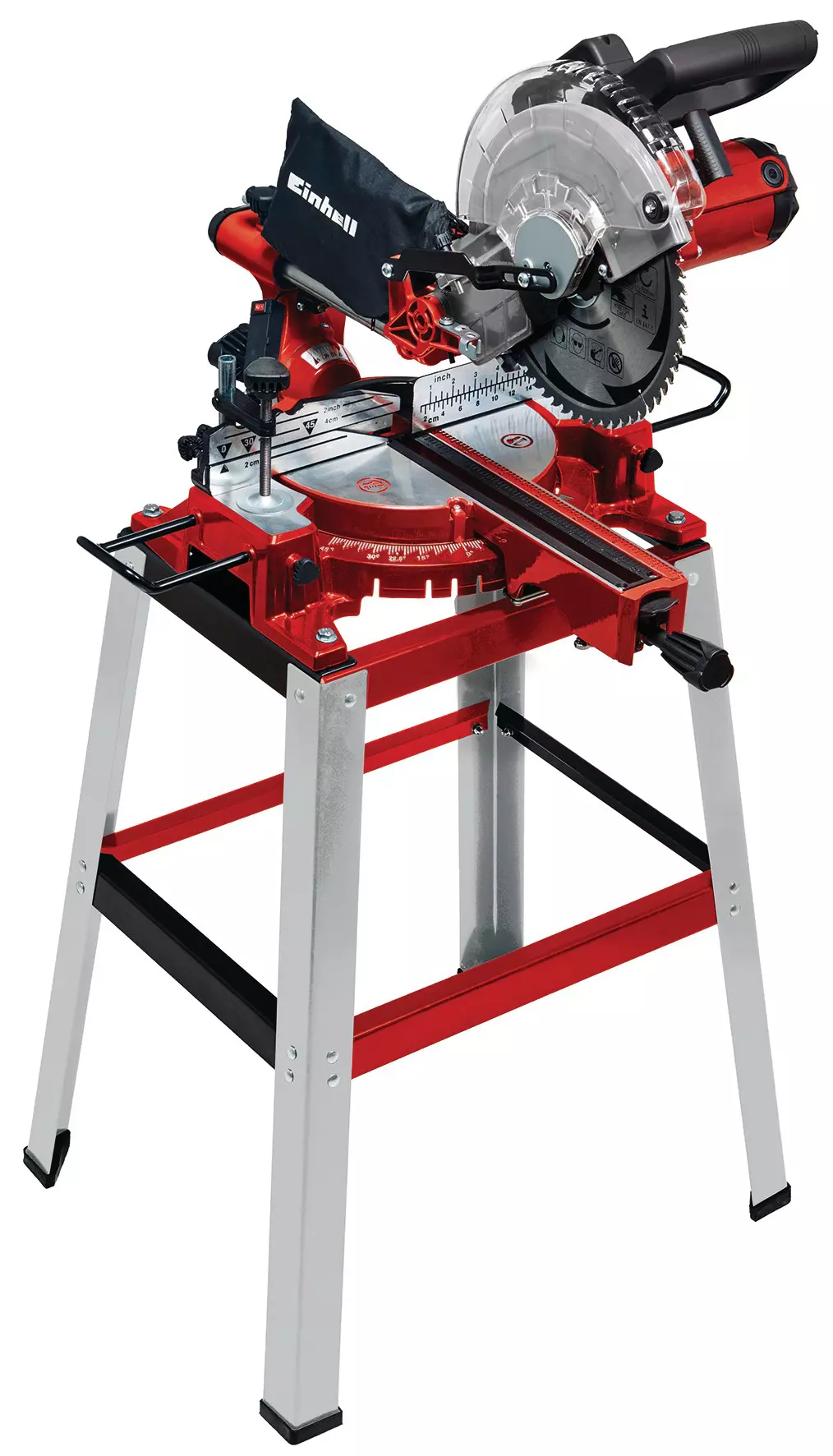

Sliding Mitre Saw
TC-SM 2531/1 U;EX;BR;127
Sliding Mitre Saw
TC-SM 2531/1 U;EX;BR;127
See more information
Show less information
Article description

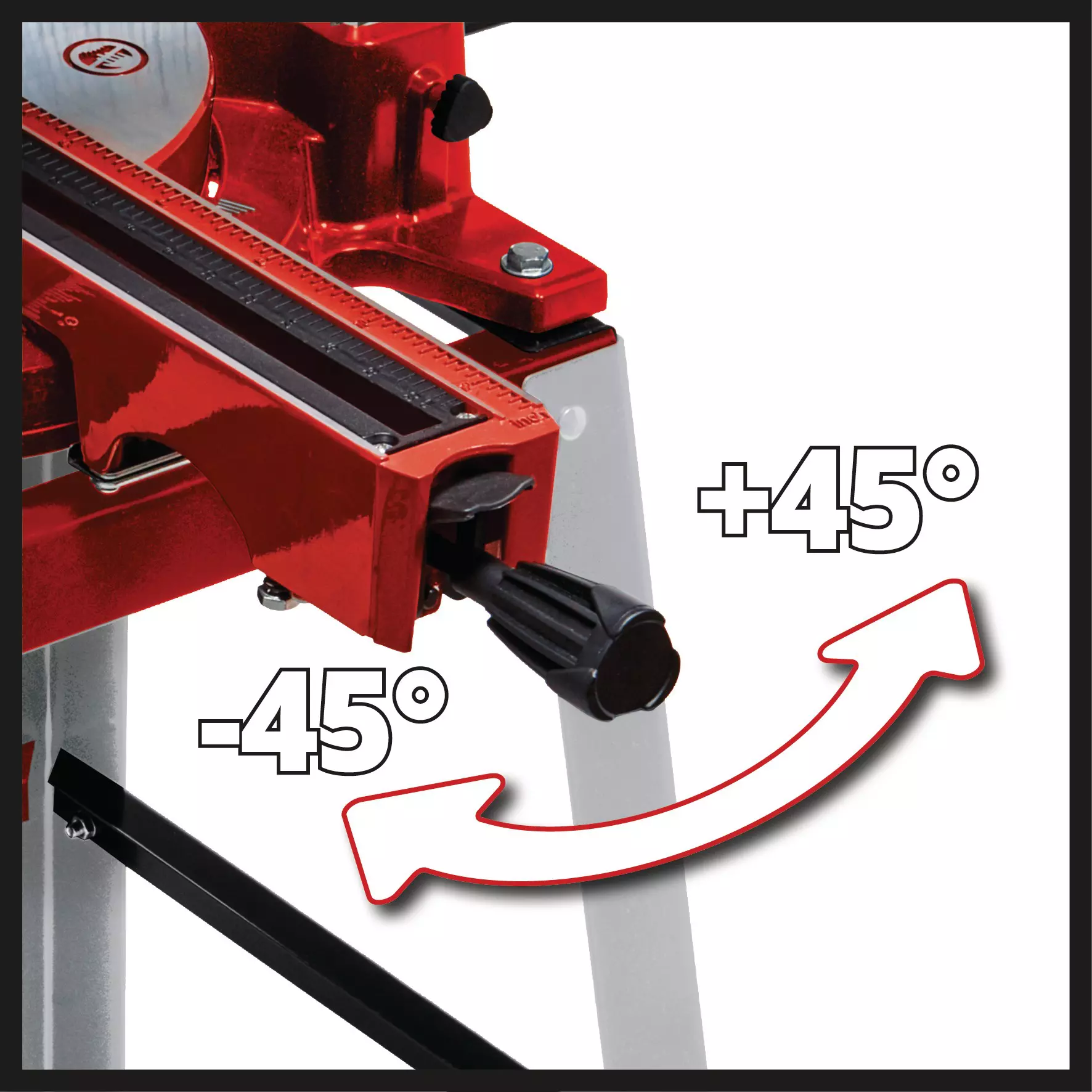

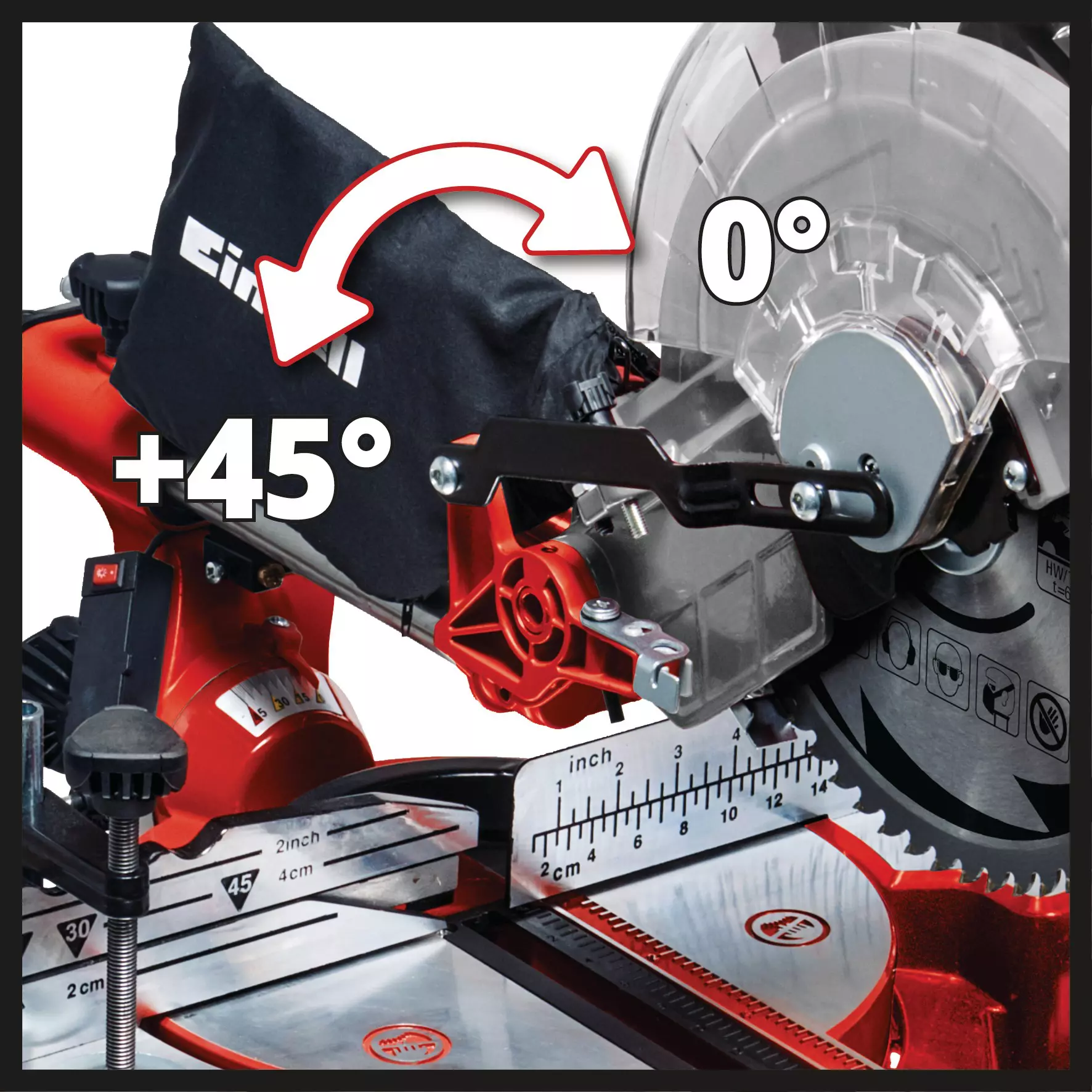

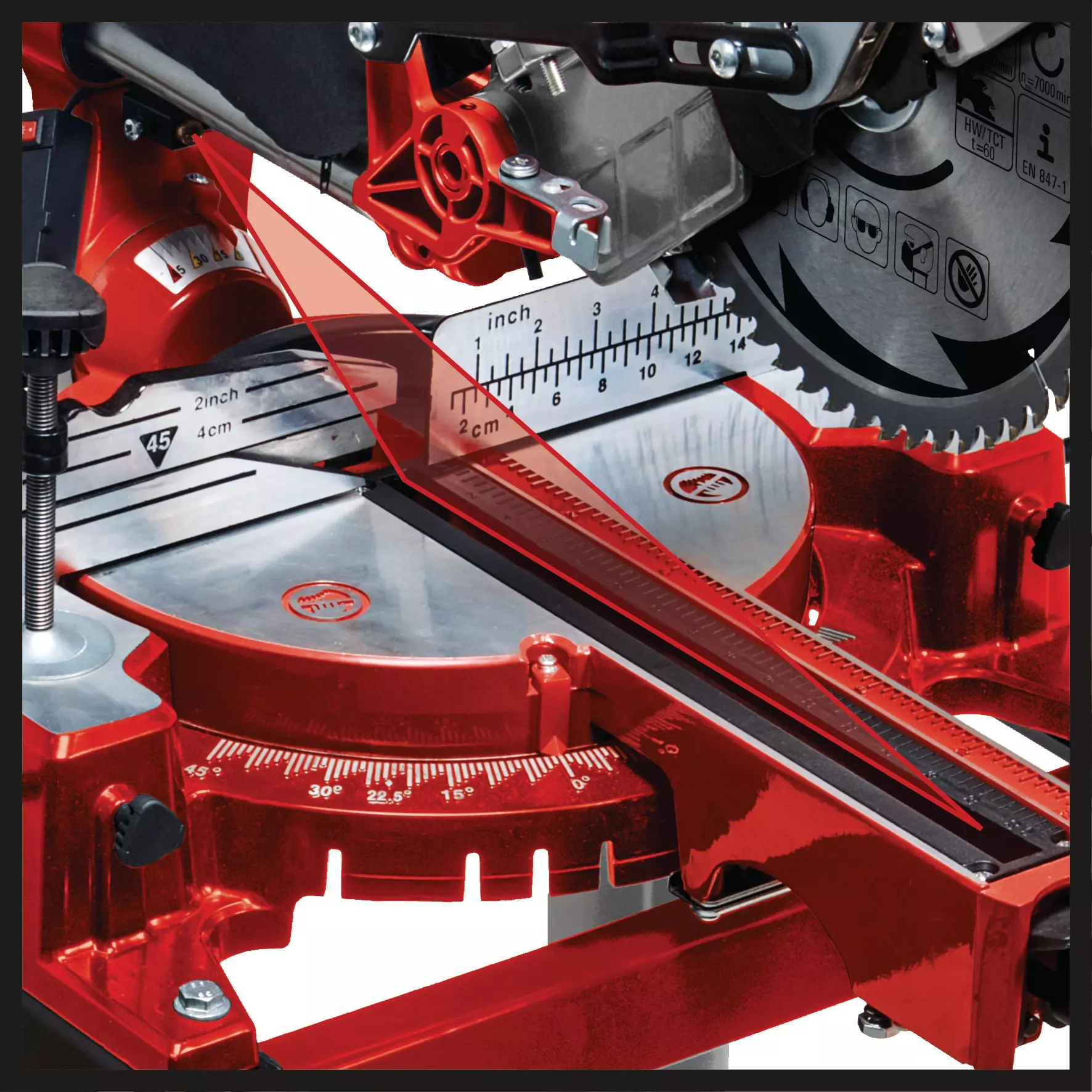

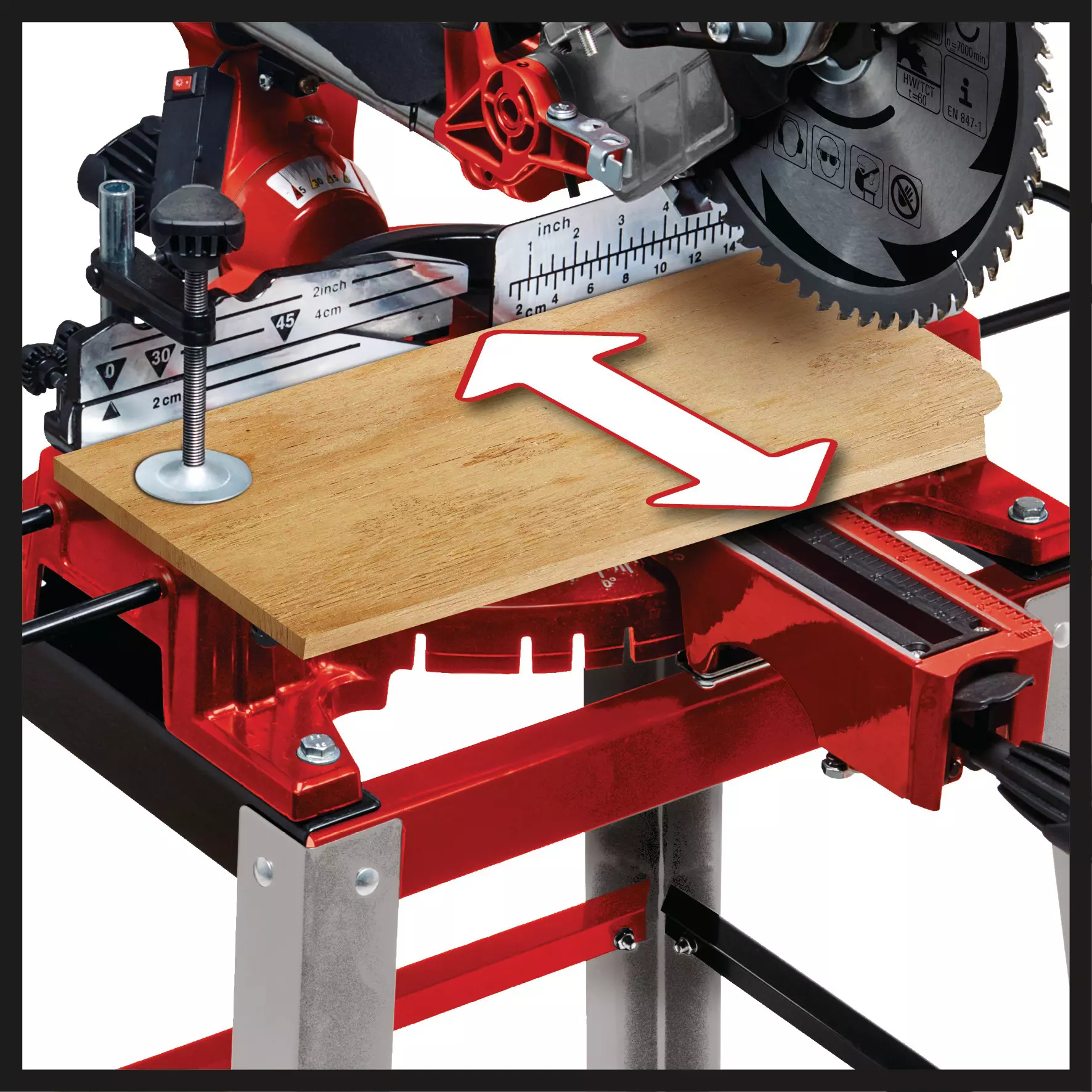

The TC-SM 2531/1 U crosscut and mitre saw combines user-friendliness with precision on crosscuts and mitre cuts in workpieces made of wood, laminated panels and plastics. The high-quality turntable comes with an exact angle adjustment facility that can be latched single handedly in various positions. The precision saw blade achieves outstanding sawing results. With a saw head that tilts to the left, the TC-SM 2531/1 U crosscut and miter saw allows miters and chamfers to be made at a wide range of angles. Supports for the sawing of long workpieces and the solid design of the clamping device ensure that the workpiece is held securely in position. The sawdust bag keeps the workplace to be kept clean and a transport brace ensures easy, safe transport.
See more information
Show less information
Technical details
| Mains supply | 127 V | 60 Hz |
| Power | 1900 W |
| Idle speed | 4800 min^-1 |
| Saw blade | 254 mm x 30 mm |
| Mitre cut | 45 ° - 0 ° |
| Swiveling range | 45 ° - 45 ° |
| Cutting capacity 90° x 90° | 310 mm |
| Cutting capacity 90° x 45° | 210 mm |
| Cutting capacity 45° x 90° | 310 mm |
| Cutting capacity 45° x 45° | 210 mm |
| Diameter of suction adapter | 36 mm |
| Length | 735 mm |
| Width | 455 mm |
| Height | 410 mm |
Related downloads
Warranties
Benefit from a 2-year warranty on all Einhell products. As Einhell, we also offer you other services in addition to the warranty.
